High Precision 100mm Travel Ball Screw Linear Guide Slide RM1605 SFU1605 with 86 Stepper Motor - CNC Motion Sliding Table System for 3D Printers, Engraving Machines & DIY Automation Projects

$139.33

$253.33

Safe 45%

High Precision 100mm Travel Ball Screw Linear Guide Slide RM1605 SFU1605 with 86 Stepper Motor - CNC Motion Sliding Table System for 3D Printers, Engraving Machines & DIY Automation Projects

High Precision 100mm Travel Ball Screw Linear Guide Slide RM1605 SFU1605 with 86 Stepper Motor - CNC Motion Sliding Table System for 3D Printers, Engraving Machines & DIY Automation Projects

$139.33

$253.33

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

28 people viewing this product right now!

SKU: 11983873

Guranteed safe checkout

Description

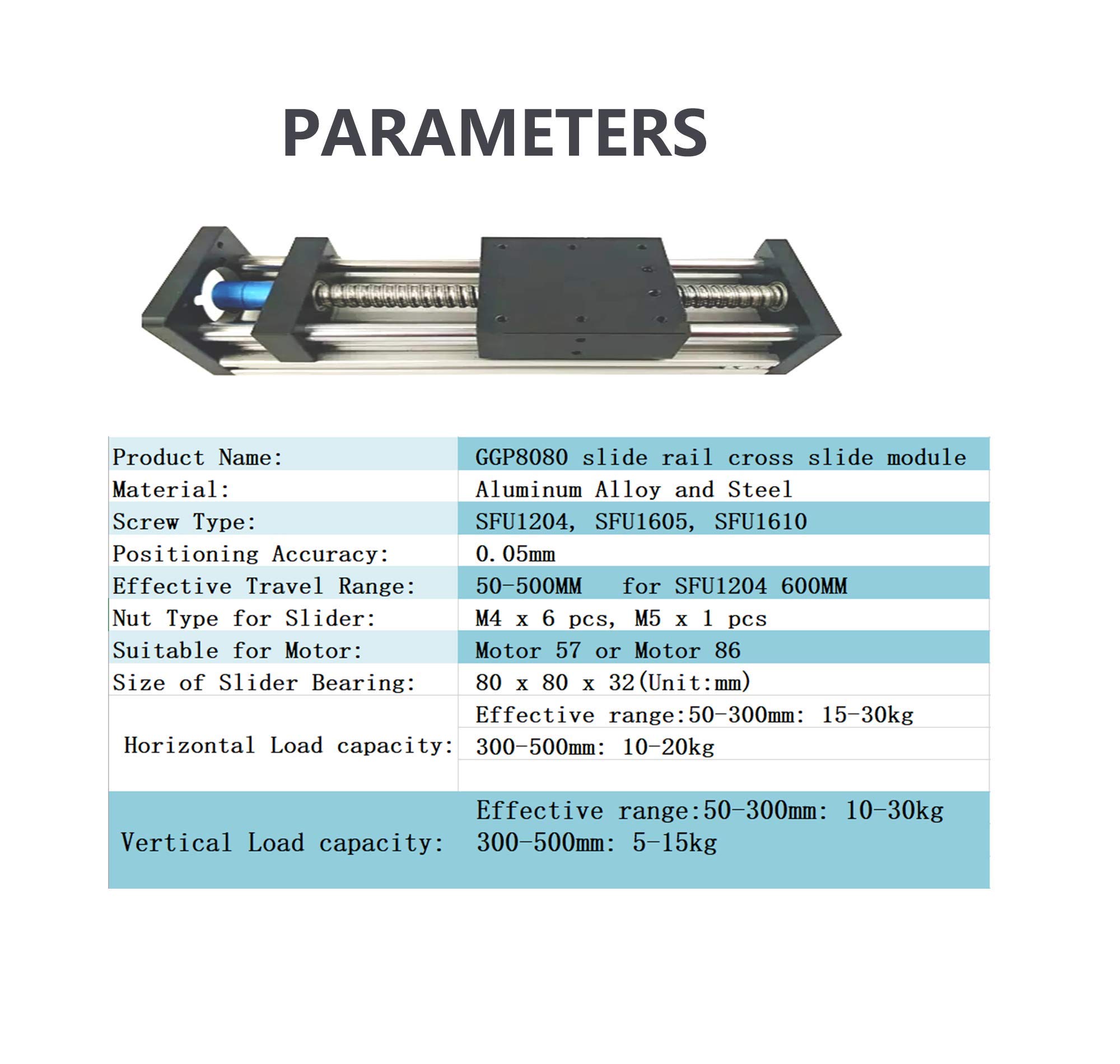

Note:The actual effective length has 10mm-15mm longer than the real effective length, which is for protecting the linear guide rail module. If you do not need the additional length, please contact us! We would confirm with you the exact; effective length.Product; information:Effective length: 50mm-500mmBall screw: SFU1204/1605/1610Motor: 42*48 or 86*100 is opcionalScrew pitch (Lead): 4MM/ 5MM/ 10MM optionalThe highest speed: horizontal: 500 mm/s vertical: 300 mm/sThe package includes Motor 86*100, but we also can provide you Motor 57(3A, 24V, 10kg/cm). If you have special requirement, please contact us.Package includes : one slide table + one Stepper Motor

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

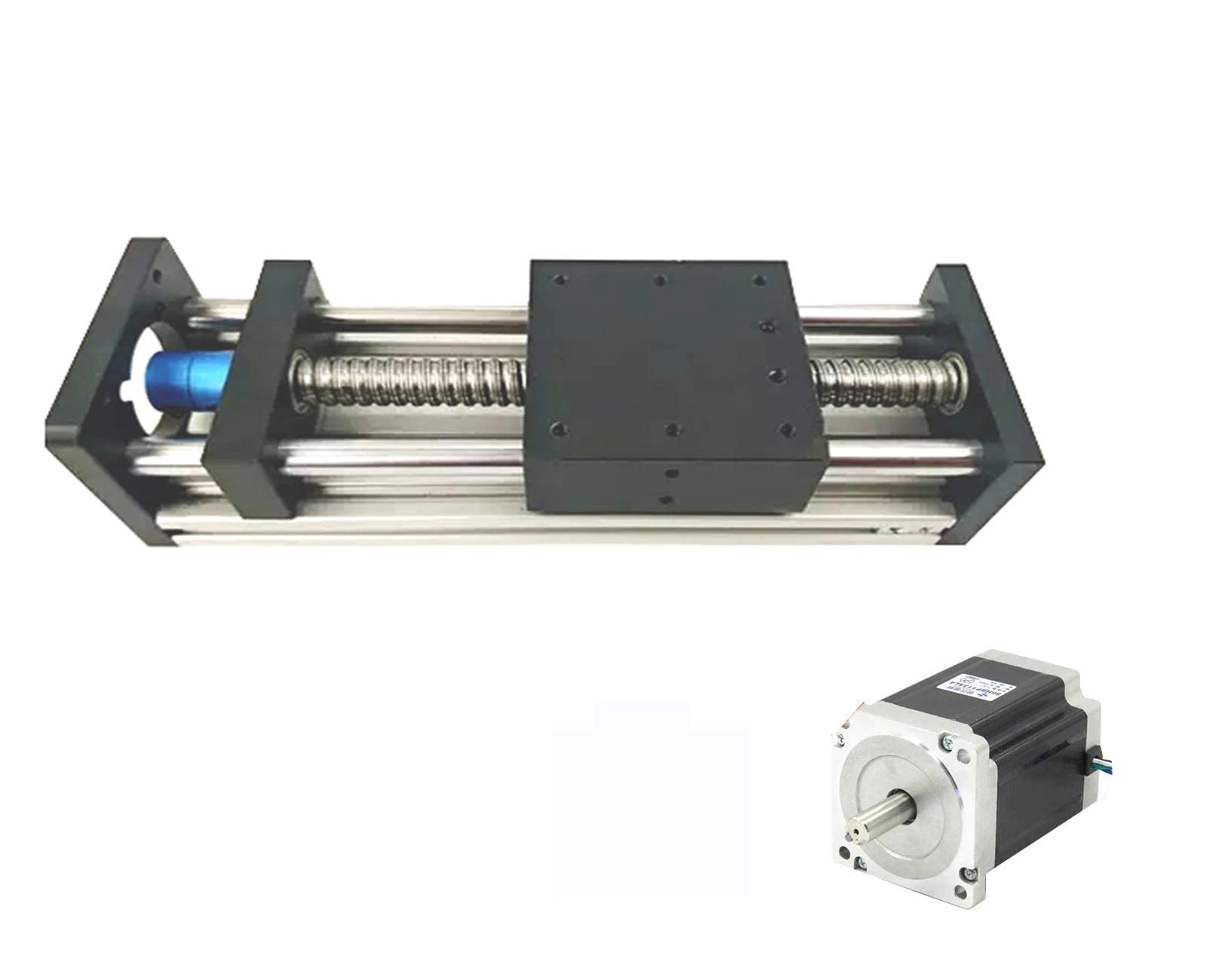

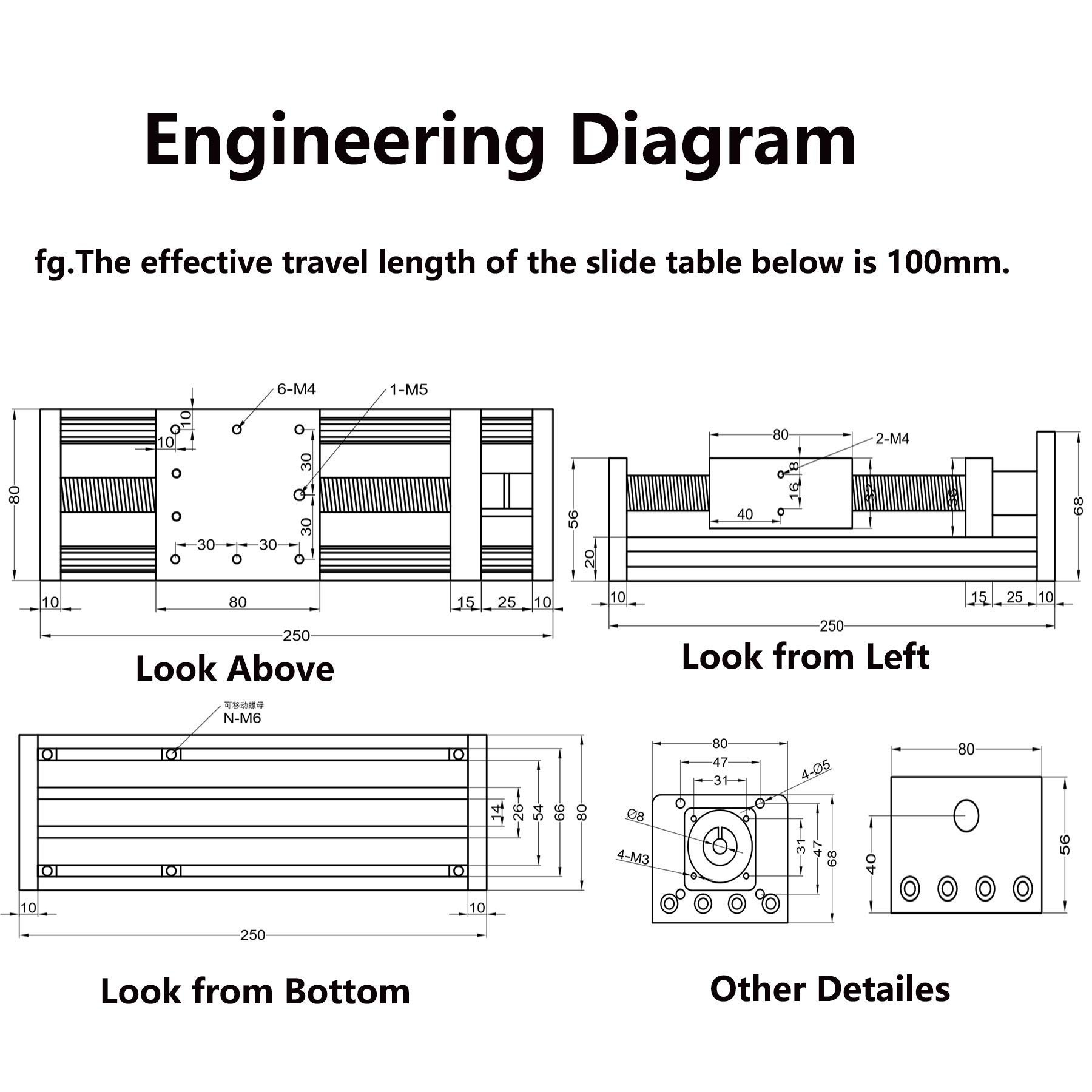

Effective Travel Length 100mm. Stepper motor Motor 86

Repeat positioning accuracy of up to ± 0.05mm

Ball Screws SFU/RM 1204/1605/1610 are optional,which is for movement structural elements executed, with high precision, high efficiency, long life, low coefficient of friction, versatility, etc

The package includes Motor 86, but we also can provide you Motor 57. If you have special requirement, please contact us.

Widely use equipment such as biotechnology, spraying equipment, punching machine, cutting machine, laser machine, cleaning equipment, welding equipment, packaging machines,DIY, CNC machine
